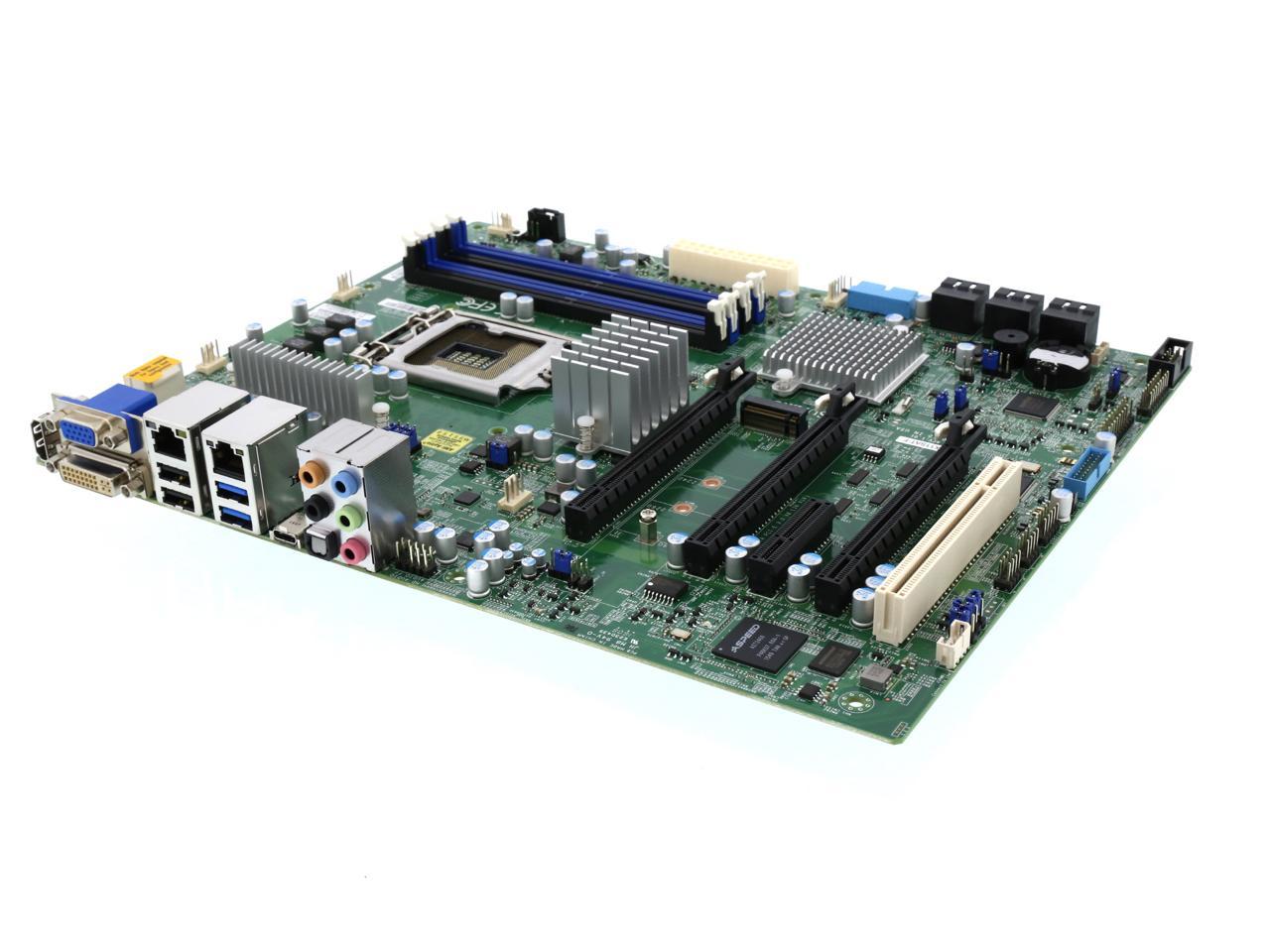

Description /* Insert SKU number in place of “sku-13-183-016” */ #overview-content.sku-13-183-016 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-016/SUPERMICRO_101216.jpg) no-repeat left; } #overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center} #overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;} #overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-016/title_101216.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; } #overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;} #overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;} #overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;} Supermicro X11SAT-F Workstation Motherboard Features Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series Intel® C236 chipset Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots 3x PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x VGA, 1x COM, TPM header 2x SuperDOM with built-in power 6x USB 3.0 (2 rear 4 via header) , 4x USB 2.0 (2 rear 2 via header), 1x USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port) M.2 NGFF connector Specifications Product SKUs MBD-X11SAT-F X11SAT-F (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12″ x 9.6″ (30.48cm x 24.38cm) Processor/Cache CPU Intel® 6th Generation Core™ i3 series Intel® 6th Generation Core™ i5 series Intel® 6th Generation Core™ i7 series Intel® Xeon® processor E3-1200 v5 series Socket H4 (LGA 1151) supported; CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10; 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support) Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single Intel Ethernet PHY i219LM Audio ALC 888S HD Audio Graphics Aspeed AST2400 BMC Expansion Slots PCI-E 3 PCI-E 3.0 x16 1 PCI-E 3.0 x1 1 – 5V PCI 32bit ***3 PCIex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCIe x1 is in x4 slot*** Input / Output USB 4 USB 2.0 ports (2 rear, 2 via header) 6 USB 3.0 ports (2 rear, 4 via header) 1 USB 3.1 (10 Gb/s) Type C ports (Rear, share with Thunderbolt and Display port) Video Output 1 DVI – D, 1 DP (DisplayPort), 1 HDMI, 1 VGA 1 Aspeed AST2400 BMC *** Display Port is Type C connector , support up to DP1.2, HDMI support up to HDMI2.0, VGA is for IPMI only *** Serial Port / Header 1 COM Ports (1 header) TPM 1 TPM 2.0 Header System BIOS BIOS Type AMI UEFI BIOS Features Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup PC Health Monitoring Voltage 12V, 3.3V, 5V, 5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN Total of 5 fan headers supporting up to 5 fans Fan speed control Overheat LED indication Temperature CPU thermal trip support I2C temperature sensing logic PECI Thermal Monitor 2 (TM2) support LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL Management Software IPMI2.0, SPM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery What’s in the Box Learn more about the Supermicro MBD-X11SAT-F-O Best Seller Ranking #72 in Server Motherboards Model Brand SUPERMICRO Model MBD-X11SAT-F-O Supported CPU CPU Socket Type Single Socket H4 (LGA 1151) CPU Type Supports:Intel 6th/7th Generation Core i3 / i5 / i7Intel Xeon processor E3-1200 v6/v5 Chipsets North Bridge Intel C236 chipset Memory Number of DDR4 Slots 4 x 288-pin DDR4 Standard DDR4 2133 / 1866 / 1600 MHz Maximum Memory Supported 64GB ECC Supported Yes Expansion Slots Other Slots 3x PCI-E 3.0 x16 slots (run at 16 / NA / 16 or 16 / 8 / 8)1x PCI-E 3.0 x1 (in x4) slot1x 5V PCI 32bit slot Storage Devices SATA 6 x SATA 6.0Gb/s Onboard Video Onboard Video Chipset Onboard Video Chipset ASPEED AST2400 BMC Onboard Audio Audio Chipset Audio Chipset ALC 888S HD Audio Onboard LAN LAN Chipset Intel I210-AT Intel PHY i219V LAN Speed 10/100/1000Mbps Rear Panel Ports RJ45 2 x RJ45 Gigabit Ethernet LAN ports USB 1.1/2.0 2 x USB 2.0 USB 3.0 USB 3.0 2 x USB 3.0 USB 3.1 1 x USB 3.1 Features Features Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series Intel C236 chipset Up to 64GB Unbuffered ECC / non-ECC UDIMM DDR4 2133 MHz; 4x DIMM slots 3x PCI-E 3.0 x16 (run at 16 / NA / 16 or 16 / 8 / 8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219V 6 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x VGA, 1x COM, TPM 1.2 header 2 x SuperDOM with built-in power 6 x USB 3.0 (2 rear 4 via header), 4 x USB 2.0 (2 rear 2 via header), 1 x USB 3.1 (10Gbps) Type C ports(rear, share with Thunderbolt and display port) M.2 NGFF connector Dimensions Form Factor ATX Dimensions (W x L) 12.0″ x 8.6″ Additional Information Date First Available March 10, 2016 Customer Reviews of the Supermicro MBD-X11SAT-F-O There are no reviews yet. Do you own this product? write a review
