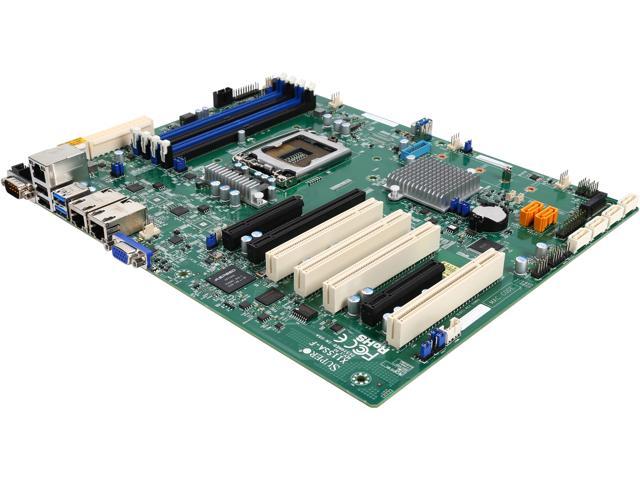

Description /* Insert SKU number in place of “sku-13-182-994” */ #overview-content.sku-13-182-994 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-994//SUPERMICRO_030216.jpg) no-repeat left; } #overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center} #overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;} #overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-994//title_030216.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; } #overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;} #overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;} #overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;} SUPERMICRO MBD-X11SSA-F-O ATX Server Motherboard Features Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® Intel® C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 4 5V PCI 32-bit slots Dual GbE LAN with Intel® i210-AT 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x VGA, 2x COM, TPM 1.2 header 2x SuperDOM with built-in power 5x USB 3.0 (2 rear 2 via header 1 Type A), 6x USB 2.0 (2 rear 4 via headers) M.2 NGFF connector Specifications Product SKUs MBD-X11SSA-F -B X11SSA-F (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12″ x 9.6″, (30.5cm x 24.4cm) Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics ASPEED AST2400 BMC Input / Output SATA 6x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 5x USB 3.0 ports (2 rear 2 via header 1 Type A) 6x USB 2.0 ports (2 rear 4 via headers) Video 1x VGA port Serial Port / Header 2x COM ports (1 rear, 1 header) SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power TPM 1x TPM 1.2 20-pin Header System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Whats in the Box Learn more about the Supermicro MBD-X11SSA-F-O Best Seller Ranking #82 in Server Motherboards Model Brand SUPERMICRO Model MBD-X11SSA-F-O Supported CPU CPU Socket Type LGA 1151 CPU Type Supports:Intel 7th / 6th Generation Core i3 seriesIntel Xeon processor E3-1200 v6/v5Intel Celeron Intel Pentium Chipsets North Bridge Intel C236 Memory Number of DDR4 Slots 4 x 288-pin DDR4 Standard DDR4 2133 / 1866 / 1600MHz Maximum Memory Supported 64GB ECC Supported Yes Expansion Slots Other Slots 1 x PCI-E 3.0 x8 (in x16) slot1 x PCI-E 3.0 x8 slot1 x PCI-E 3.0 x4 (in x8) slot4 x 5V PCI 32-bit slots Storage Devices SATA 6 x SATA 6.0Gb/s SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Onboard Video Chipset Aspeed AST2400 BMC Onboard LAN LAN Chipset Intel I210-AT Second LAN Chipset Intel I210-AT Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports COM 1 Video Ports 1 x VGA RJ45 2 x RJ45 Gigabit Ethernet LAN ports1 x RJ45 Dedicated IPMI LAN port USB 1.1/2.0 2 x USB 2.0 USB 3.0 USB 3.0 2 x USB 3.0 Features Features Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium Intel C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2133 MHz; 4 x DIMM slots Expansion slots:1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8), 4 5V PCI 32-bit slots Dual GbE LAN with Intel i210-AT 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 x VGA, 2 x COM, TPM 1.2 header 2 x SuperDOM with built-in power 5 x USB 3.0 (2 rear 2 via header 1 Type A), 6 x USB 2.0 (2 rear 4 via headers) M.2 NGFF connector Dimensions Form Factor ATX Dimensions (W x L) 12.0″ x 9.6″ Additional Information Date First Available December 23, 2015 Customer Reviews of the Supermicro MBD-X11SSA-F-O There are no reviews yet. Do you own this product? write a review
