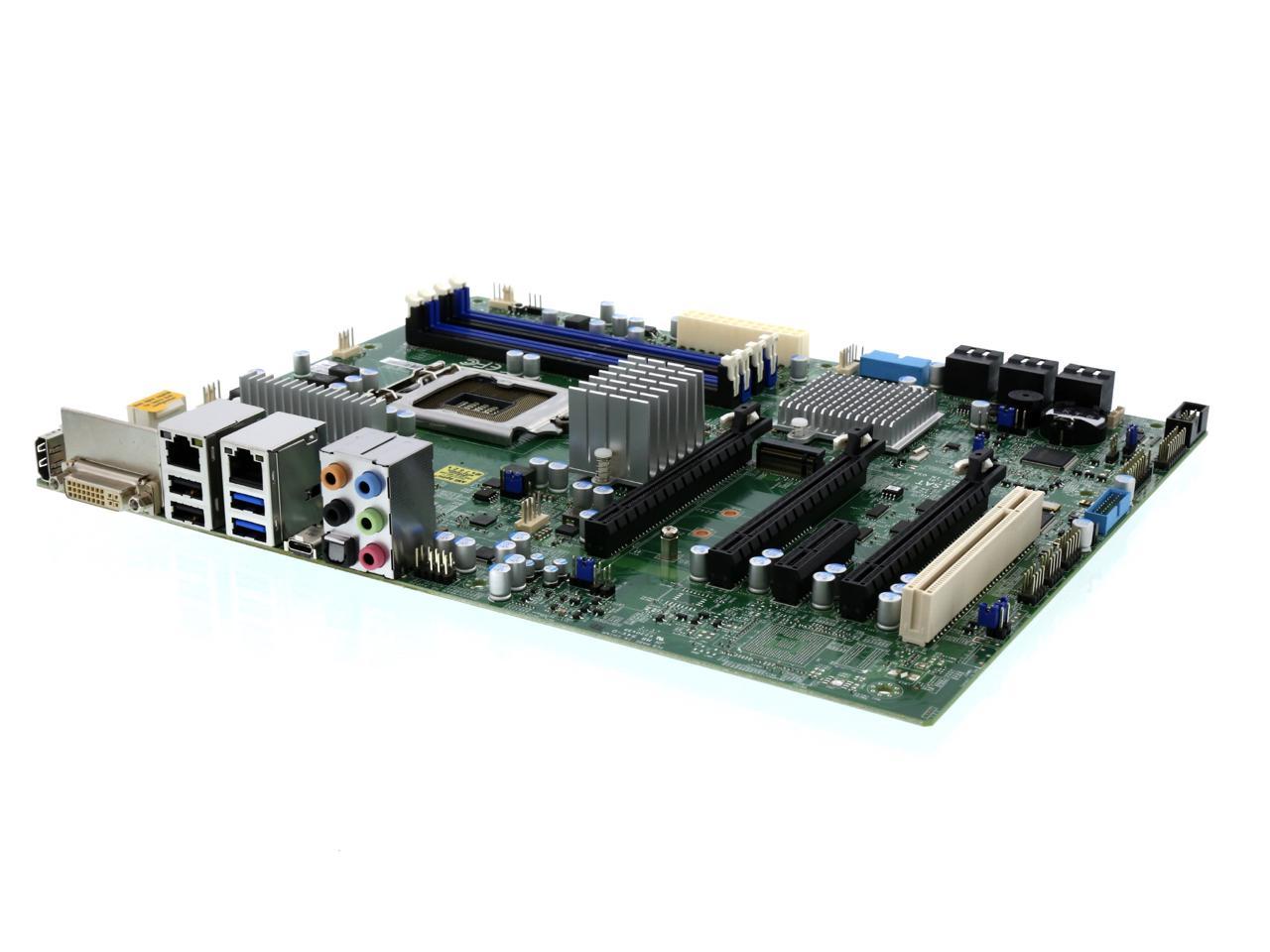

Description /* Insert SKU number in place of “sku-13-183-022” */ #overview-content.sku-13-183-022 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-022/SUPERMICRO_041916.jpg) no-repeat left; } #overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center} #overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;} #overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-022/title_041916.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; } #overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;} #overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;} #overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;} SUPERMICRO MBD-X11SAT-O ATX Server Motherboard Features Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series Intel® C236 chipset Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots 3x PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots Single GbE LAN with Intel® i210-AT Single GbE LAN with Intel® i219LM 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x COM, TPM header 2x SuperDOM with built-in power 6x USB 3.0 (2 rear 4 via header) 4x USB 2.0 (2 rear 2 via header) 1x USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port) M.2 NGFF connector Specifications Product SKUs MBD-X11SAT -B X11SAT (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12″ x 9.6″, (30.5cm x 24.4cm) Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i7/i5/i3 series processors CPU TDP up to 95W System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support Network Controllers Intel I210-AT Intel PHY i219LM Ethernet Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Input / Output SATA 6x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports USB 6x USB 3.0 ports (2 rear 4 via headers) 4x USB 2.0 ports (2 rear 2 via header) 1 USB 3.1 (10 Gb/s) Type C ports (Rear, share with Thunderbolt and Display port) Video 1 DVI – D, 1 DP (Display Port), 1 HDMI Display Port is Type C connector, support up to DP 1.2, HDMI support up to HDMI2.0 Audio ALC 888S HD Audio Serial Port / Header 1x COM port (1 header) SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power TPM 1x TPM 20-pin Header Expansion Slots PCI-Express 3x PCI-E 3.0 x16 slots (run at 16/NA/16 or 16/8/8) 1x PCI-E 3.0 x1 (in x4) slot 1x 5V PCI 32bit slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software AMT SuperDoctor® 5 vPro Watch Dog Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, 3.3V, 5V, 12V, 5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 5 fan headers supporting up to 5 fans 5 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis Intrusion Detection Chassis Intrusion Header Chipkill support RoHS What’s in the Box Learn more about the Supermicro MBD-X11SAT-O Model Brand SUPERMICRO Model MBD-X11SAT-O Supported CPU CPU Socket Type LGA 1151 CPU Type Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5 / i3 series processorsCPU TDP up to 95W Chipsets North Bridge Intel C236 Memory Number of DDR4 Slots 4 x 288-pin DDR4 Standard 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs Maximum Memory Supported 64GB ECC Supported Yes Expansion Slots Other Slots 3x PCI-E 3.0 x16 slots (run at 16 / NA / 16 or 16 / 8 / 8)1x PCI-E 3.0 x1 (in x4) slot1x 5V PCI 32bit slot Storage Devices SATA 6 x SATA 6.0Gb/s SATA RAID 0/1/5/10 Onboard LAN LAN Chipset Intel I210-AT Intel PHY i219LM Ethernet Controllers LAN Speed 10/100/1000Mbps Rear Panel Ports RJ45 2 x RJ45 Gigabit Ethernet LAN ports USB 1.1/2.0 2 x USB 2.0 USB 3.0 USB 3.0 2 x USB 3.0 Features Features Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series Intel C236 chipset Up to 64GB Unbuffered ECC / non-ECC, UDIMM DDR4 2133MHz; 4x DIMM slots 3x PCI-E 3.0 x16 (run at 16 / NA / 16 or 16 / 8 / 8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219LM 6 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x COM, TPM 1.2 header 2 x SuperDOM with built-in power 6 x USB 3.0 (2 rear 4 via header), 6 x USB 2.0 (2 rear 4 via headers), 1 x USB 3.1 (10 Gbps) Type C ports (rear, share with Thunderbolt and display port) M.2 NGFF connector Dimensions Form Factor ATX Dimensions (W x L) 12.0″ x 9.6″ Additional Information Date First Available March 07, 2016 Customer Reviews of the Supermicro MBD-X11SAT-O There are no reviews yet. Do you own this product? write a review
