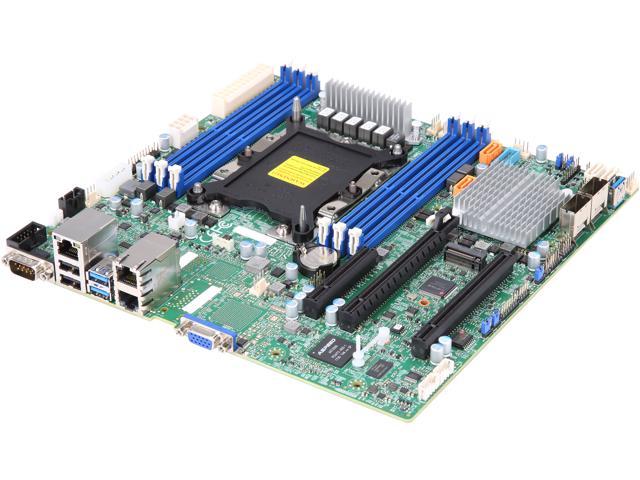

Description Learn more about the Supermicro MBD-X11SPM-F-O Model Brand SUPERMICRO Model MBD-X11SPM-F-O Supported CPU CPU Socket Type LGA 3647 CPU Type Supports 1st / 2nd Gen Intel Xeon Scalable Processors Chipsets North Bridge Intel C621 Memory Number of DDR4 Slots 6 x 288-pin DDR4 Standard DDR4 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM / LRDIMM Maximum Memory Supported Up to 768GB ECC 3DS LRDIMMUp to 384GB ECC LRDIMMUp to 192GB ECC RDIMM ECC Supported Yes Expansion Slots PCI Express 3.0 x16 2 PCI Express x8 1 x PCI-E 3.0 x8 Other Slots 1 x PCI-E 3.0 x8 Storage Devices SATA 12 x SATA 6.0Gb/s SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Onboard Video Chipset Aspeed AST2500 BMC Onboard LAN LAN Chipset Marvel 88E1512 LAN Speed 10/100/1000Mbps Second LAN Chipset Marvel 88E1512 Second LAN Speed 10/100/1000Mbps Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports COM 1 Video Ports 1 x VGA port RJ45 2 x 1 GbE LAN ports USB 1.1/2.0 2 x USB 2.0 USB 3.0 USB 3.0 2 x USB 3.0 Features Features Intel Xeon Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel C621 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 6 x DIMM slots Expansion slots: 2 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x8 (in x8) 2 x GbE LAN ports 12 x SATA3 (6 Gbps) via C621 Supports 12V DC power input 4-pin Internal power connector 5 x USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 x USB 2.0 (2 rear, 4 via headers) I/O: 1 x VGA, 2 x COM, TPM header Dimensions Form Factor Micro ATX Dimensions (W x L) 9.6″ x 9.6″ Additional Information Date First Available January 30, 2018 Customer Reviews of the Supermicro MBD-X11SPM-F-O There are no reviews yet. Do you own this product? write a review
