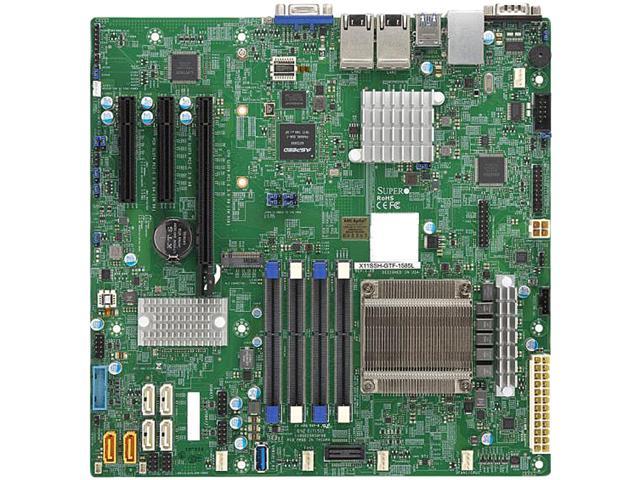

Description UP Xeon® Motherboards – Socket FCBGA 1440 Xeon E3-1500 v5 Family Boards / FCBGA 1440 Introducing Supermicro’s latest single processor design which features the Intel C236/CM236 chipset and supports an onboard Intel Xeon E3-1500 v5 series BGA processor. The new 14nm microarchitecture offers up to 32GB of fast DDR4 SO-DIMM in 2 slots, 12V DC input, onboard IPMI or AMT vPro, USB3.0, M.2, mini PCI-E, PCI-E 3.0 x16, and SATA 3.0 (6Gbps) HDD. The BGA processor also provides GT4e Iris Pro graphics for outstanding 4K HD graphics performance, improved media hardware acceleration (VHD), up to 128MB eDRAM for increased system efficiency, all while keeping power consumption to a minimum. Features * Product Type: Server Motherboard * Maximum Memory: 64 GB * Product Type: Server Motherboard * Compatibility: Supermicro SuperChassis 1U: SC813MFTQC-350CB SC813MFTQC-R407CB SC113MFAC2-605CB SC113MFAC2-R606CB SC512F-350B SC813MTQ-350CB 2U: SC823TQ-653LPB SC213LT-563LPB 3U: SC833T-653B Mid/Mini-Tower: SC731i-300B SC732I-500B 4U/Tower: SC842i-500B * Maximum Memory: 64 GB * Packaged Quantity: 1 * Form Factor: Micro ATX * Total Processor Supported: 1 * Controller Type: Serial ATA/600 * Form Factor: Micro ATX * Product Model: X11SSH-GF-1585 * Product Name: X11SSH-GF-1585 Server Motherboard * Package Type: Retail * RAID Levels: 10 * RAID Levels: 5 * RAID Levels: 1 * RAID Levels: 0 * Total Processor Supported: 1 * Controller Type: Serial ATA/600 * Processor Socket: Socket BGA-1440 * Brand Name: Supermicro * Processor Socket: Socket BGA-1440 * Brand Name: Supermicro * Memory Technology: DDR4 SDRAM * Memory Technology: DDR4 SDRAM * Width: 9.6″ * Depth: 9.6″ * Chipset Manufacturer: Intel * Number of Memory Slots: 4 * Gigabit Ethernet: Yes * Number of SATA Interfaces: 6 * Onboard Video: On-board Video Chipset * RAID Supported: Yes * Number of Total Expansion Slots: 3 * Number of PCI Express x8 Slots: 2 * Number of PCI Express x16 Slots: 1 * Total Number of USB Ports: 4 * Number of USB 3.0 Ports: 2 * Total Number of Onboard USB Ports: 9 * Number of Onboard USB 3.0 Ports: 3 * Total Number of PCI Exp Learn more about the Supermicro MBD-X11SSH-GF-1585-O Model Brand SUPERMICRO Model MBD-X11SSH-GF-1585-O Supported CPU CPU Socket Type FCBGA1440 CPU Type Supports Intel Xeon processor E3-1585 v5Socket FCBGA1440 supported, CPU TDP support 65W Chipsets North Bridge Intel C236 Memory DDR4 Standard DDR4 2133 / 1866 / 1600 MHz ECC DDR4 SODIMMs Maximum Memory Supported 64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slots Expansion Slots PCI Express x8 1 x PCI-E 3.0 x8 (in x16 slot)1 x PCI-E 3.0 x8 PCI Express x4 1 x PCI-E 3.0 x4 (in x8 slot) Storage Devices SATA 6 x SATA 6.0Gb/s SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Onboard Video Chipset Aspeed AST2400 BMC Onboard LAN LAN Chipset Intel I350 LAN Speed 10/100/1000Mbps Second LAN Chipset Intel I350 Second LAN Speed 10/100/1000Mbps Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports COM 1 USB 1.1/2.0 2 x USB 2.0 USB 3.0 USB 3.0 2 x USB 3.0 Features Features Intel Xeon processor E3-1585 v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 65W Intel C236 chipset Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133 MHz; 4 x DIMM slots Support Intel Iris Pro Graphics P580 (GT4e), for VHD and Quick Sync Video Expansion slots: 1 x PCI-E 3.0 x8 (in x16)1 x PCI-E 3.0 x81 x PCI-E 3.0 x4 (in x8) 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 2 x SuperDOM with built-in power 5 x USB 3.0 (2 x rear, 1 x Type A, 2 x internal) M.2 NGFF connectorM.2 Interface: PCI-E 3.0 x4 and SATAForm Factor: 2242, 2280, 22110Key: M-Key Double Height Connector Dimensions Form Factor Micro ATX Dimensions (W x L) 9.6″ x 9.6″ Additional Information Date First Available February 11, 2019 Customer Reviews of the Supermicro MBD-X11SSH-GF-1585-O There are no reviews yet. Do you own this product? write a review
