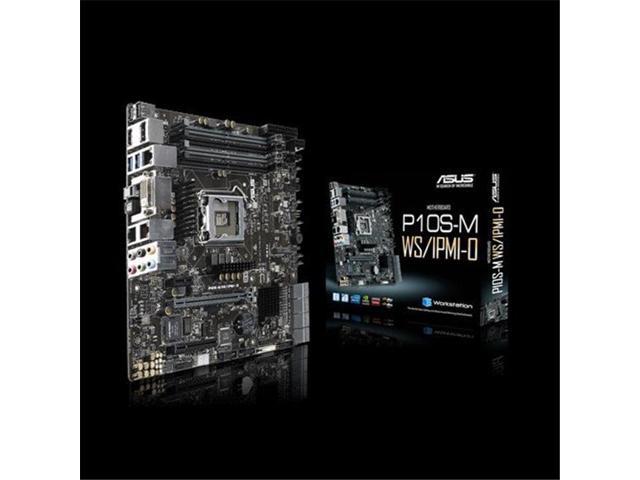

Description Learn more about the ASUS P10S-M WS/IPMI-O Model Brand ASUS Model P10S-M WS/IPMI-O Supported CPU CPU Socket Type LGA 1151 CPU Type Build in Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/for Xeon E3-1200 v6/v5 and 7th/6th genereation Core, Pentium and Celeron Processors Chipsets North Bridge Intel C236 Memory Number of DDR4 Slots 4 x 288-pin DDR4 Standard DDR4 2400/ 2133* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor. Maximum Memory Supported 64GB Channel Supported Channel Supported Dual Channel ECC Supported Non-ECC Expansion Slots PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16 (x16 mode) PCI Express x8 1 x PCIe 3.0/2.0 x8 (x4 mode)* From PCH PCI Express x1 1 x PCIe 3.0/2.0 x1 (x1 mode)* From PCH Storage Devices SATA 8 x SATA 6.0Gb/s Onboard Video Onboard Video Chipset Onboard Video Chipset Integrated Graphics Processor Multi-VGA output support: HDMI/DVI-D/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz– Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 512MBSupports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, InsiderSupports up to 3 displays simultaneouslyAspeed AST2400 with 32MB VRAM Onboard Audio Audio Chipset Audio Chipset Realtek ALC1150 Audio Channels Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I210, 2 x Gigabit LAN Controller(s) Rear Panel Ports Video Ports 1 x DVI-D1 x DisplayPort1 x HDMI RJ45 1 x Management LAN2 x LAN (RJ45) port(s) USB 1.1/2.0 2 x USB 2.0 USB 3.1 2 x USB 3.1 Gen 1 S/PDIF Out S/PDIF Out 1 x Optical Audio Ports 6 Ports Onboard Ports Onboard USB 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) Features Features Rack Optimized Compact Workstation Board with Complete Remote Management Design for rack optimized solution with out-of band remote management Accelerate to 32Gbit/s data-transfer speeds with M.2 native NVMe supported Optimized integrated graphic power supported latest API Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D Remote Management with optional ASMB8 Dimensions Form Factor Micro ATX Dimensions (W x L) 9.6″ x 9.6″ Packaging Package Contents Accessories:User’s manualI/O Shield1 x COM port cable(s)8 x SATA 6Gb/s cable(s)1 x VGA bracket(s)1 x SCD1 x ASWM Enterprise SDVD1 x OSG manual1 x Metal Plate for LGA1151 Additional Information Date First Available March 12, 2019 Customer Reviews of the ASUS P10S-M WS/IPMI-O There are no reviews yet. Do you own this product? write a review
