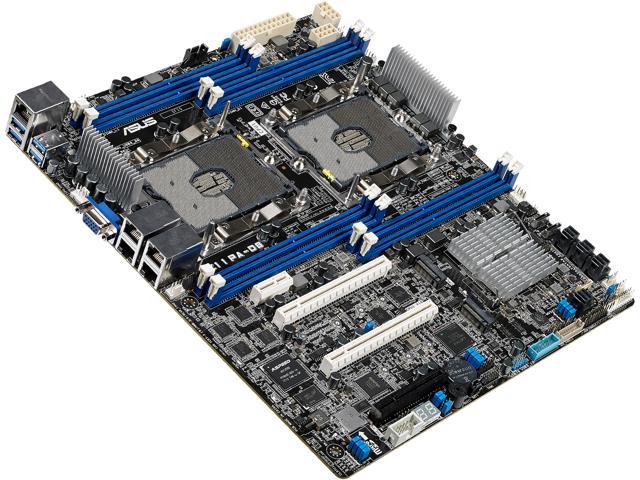

Description Learn more about the ASUS Z11PA-D8 Model Brand ASUS Model Z11PA-D8 Supported CPU CPU Socket Type Dual LGA 3647 CPU Type Supports 1st / 2nd Gen Intel Xeon Scalable Processor Family Chipsets Other Chipset Intel Lewisburg PCH C621 Memory DDR4 Standard DDR4 2666 / 2400 Maximum Memory Supported Maximum up to 256GB RDIMM / Maximum up to 512GB LRDIMM / Maximum up to 1024GB LR-DIMM 3DS Expansion Slots PCI Express 3.0 x16 Slot Location 3: PCI-E x16 Slot Location 5: PCI-E x16 PCI Express x8 Slot Location 1: PCI-E x8 Other Slots Slot Location 6: MIO Slot for Audio card Storage Devices SATA 12 x SATA3 6Gb/s ports (12 by 3 mini-SAS Connector) SATA RAID 0/1/5/10 SAS SAS Controllers Available (Sold Separatly):ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional)ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional) Onboard Video Onboard Video Chipset Onboard Video Chipset Aspeed AST2500 with 64MB VRAM Onboard LAN Number of LAN 4 x Intel I210AT 1 x Mgmt LAN LAN Chipset Intel I210-AT LAN Speed 10/100/1000Mbps Second LAN Chipset Intel I210-AT Second LAN Speed 10/100/1000Mbps Rear Panel Ports Video Ports 1 x VGA Port RJ45 4 x RJ-45 GbE LAN ports1 x RJ-45 Mgmt LAN port USB 3.0 USB 3.0 4 x USB 3.0 Features Features Powerful performance with Intel Xeon Scalable processor and ECC memory Increased performance or data redundancy with dual M.2 SSDs in RAID mode High-speed storage interface support with dual OCuLink for NVMe Connect up to 16 SATA 6Gb/s storage devices Comprehensive IT infrastructure management software More flexible storage capability with SD card support Quick initialization guidance for faster BIOS tracking enhancement Dimensions Form Factor CEB Dimensions (W x L) 12.0″ x 10.5″ Additional Information Date First Available September 01, 2022 Customer Reviews of the ASUS Z11PA-D8 There are no reviews yet. Do you own this product? write a review
