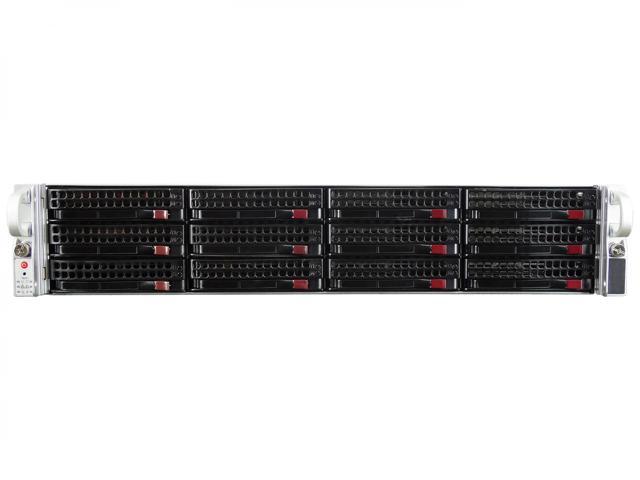

Description The Supermicro SuperServer 6028U-TR4T is a high-end server which utilizes the CSE-829UAC-R1K02-T 2U server chassis where the SC829UAC-R1K02-T 2U server chassis and the X10DRU-i dual processor motherboard subsystems reside. The SC829UAC-R1K02-T 2U form factor build is equipped with 12x hot-swappable 3.5” SAS 12Gbps/SATA 6Gbps drive bays and supports full height PCIe expansion cards. The X10DRU-i supports E5-2600 v3/v4 processors paired with up to 3TB ECC LRDIMM or 1.5TB ECC RDIMM at 2400MHz and includes the AOC-2UR6-i4XT riser card which has 4x X540 10GBase-T ports, (4x 10Gbps RJ45). The 2U form factor build supports 12x hot-swappable 3.5” SAS 12Gbps/SATA 6Gbps drive bays and 2x 1000W Titanium Level power supplies. The 6028U-TR4T offers flexibility for use cases that involve intense application workloads using its equipped 8x SATA3 (6Gbps), 12x SAS3 ports support via optional add-on Cards. System: SuperMicro SuperServer 6028U-TR4T Motherboard: X10DRU-i Processor: 2x Xeon E5-2670 v3 2.3GHz Twelve Core Processors Memory: 768GB (24x 32GB) DDR4 Memory Storage Controller: 12Gbps IT Mode Storage Controller, (Flashed to IT Mode; No RAID, Pass-Thru Only) Hard Drive: 12x 3.5″ Tray Integrated Network: 4x Intel® X540 10GBase-T RJ45 LAN ports, AOC-2UR6-i4XT Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Power Supply: 2x 1000W 80 Platinum Power Supplies Rails: One Set of 4-Post Rack Rails Learn more about the Supermicro SuperServer 6028U-TR4T Model Brand SUPERMICRO Series SuperServer Model SuperServer 6028U-TR4T Details Type Rack Rack Height Rack Height 2U Processor CPU Socket CPU Socket LGA 2011-3 Number of CPU Cores Number of CPU Cores 12-Core Processor # of Processors Installed 2 MAX Processors MAX Processors 2 Chipset Chipset Intel C612 Memory Installed Memory Size 768GB Memory Type DDR4 Max Memory Capacity 3TB ECC 3DS LRDIMM/1.5TB ECC RDIMM/LRDIMM Number of Memory Slots 24 Storage Hard Drive (Installed) 12x 3.5″ Tray Storage Controller 12Gbps IT Mode Storage Controller, (Flashed to IT Mode; No RAID, Pass-Thru Only) SSD (Installed) No Raid Level Raid Level (No RAID, Pass-Thru Only) Graphic Controller Graphic Type Integrated Graphics Networking Ethernet Controller 4x Intel® X540 10GBase-T RJ45 LAN ports, AOC-2UR6-i4XT Remote Management IPMI 2.0 with virtual media over LAN and KVM-over-LAN support LAN Ports 4 x Ports Expansion & Ports Management Port RJ 45 Software Operating System No Dimensions & Weight Dimensions 28.5″ x 17.2″ x 3.5″ Weight 72lbslbs Additional Information Date First Available March 26, 2021 Customer Reviews of the Supermicro SuperServer 6028U-TR4T There are no reviews yet. Do you own this product? write a review
