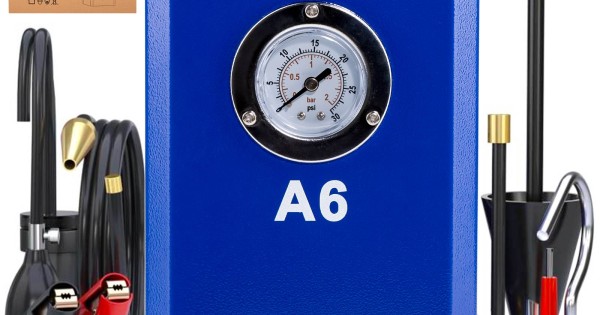

GODIAG A6 automotive diagnostic leak detector is designed for testing leaks in vehicle pipe systems. It can be used on all cars, motorcycles, snowmobiles, ATV, light trucks, boats, etc.Godiag A6 Automobile Smoke Leak Detector with Pressure Gauge Test LeakProduct Features:smoke establishment more quicklybuilt-in air pump, not limited by the siteliquid observation windowequipped with overheat protection deviceequipped with pressure gaugeleakage detection of various pipeline systemsair test modesmoke test modelightweight, simple and durable How to use it?Prepare the Unit1.Mount the Power Cords to the Power Inlets.Important Notice Red plug to red socket and black plug to black socket.2.Mount the Smoke Tube to the Smoke Outlet, and lock it with the quick clamp.Important Notice Use the Velcro Strap to collect the Power Cords and the Smoke Tube before storage.3.Open the Oil Filler Port, fill smoke oil into the reservoir, note the Oil Level Indication Window, make sure the oil level do NOT exceed the Max line. If the smoke oil is overfilled, turn the unit upside down to drain some oil out.4. Now the unit is ready to use.!Important NoticePay attention to the Oil Level Indication Window before use. If the oil level is close to the bottom, the unit will need a refill. Test Run1.Connect 12V vehicle battery with the clamps on the Power Cords. The Power Indicator will be ON and the unit will start generating air pressure.Important Notice red clamp to positive ( ), and black clamp to negative (-). 2.Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure. 3.Switch on the smoke mode switch, the smoke mode indicator will be ON. The unit will start producing smoke. Godiag A6 Specifications:Power Supply: DC12V /6AFlow Rate: Test hose:1.5mPower cable:1.5mOil filling: 30mlAir source: internal air pumpSize: 310 x 270 x 285mmGross weight: 5KGTest pressure: 15psiHigh temperature protection: YES Package Includes:1pc x Main Unit1pc x Inflatable Adaptor1pc x Power Cords1pc x Smoke Tube1pc x Intake Adaptor Core1pc x User Manual1pc x Certification
